For the extraction of fumes from MIG/MAG, TIG and electrode welding processes.

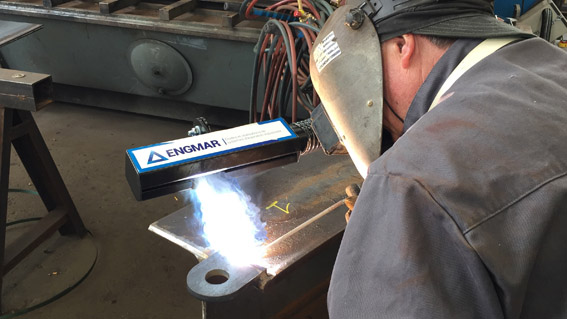

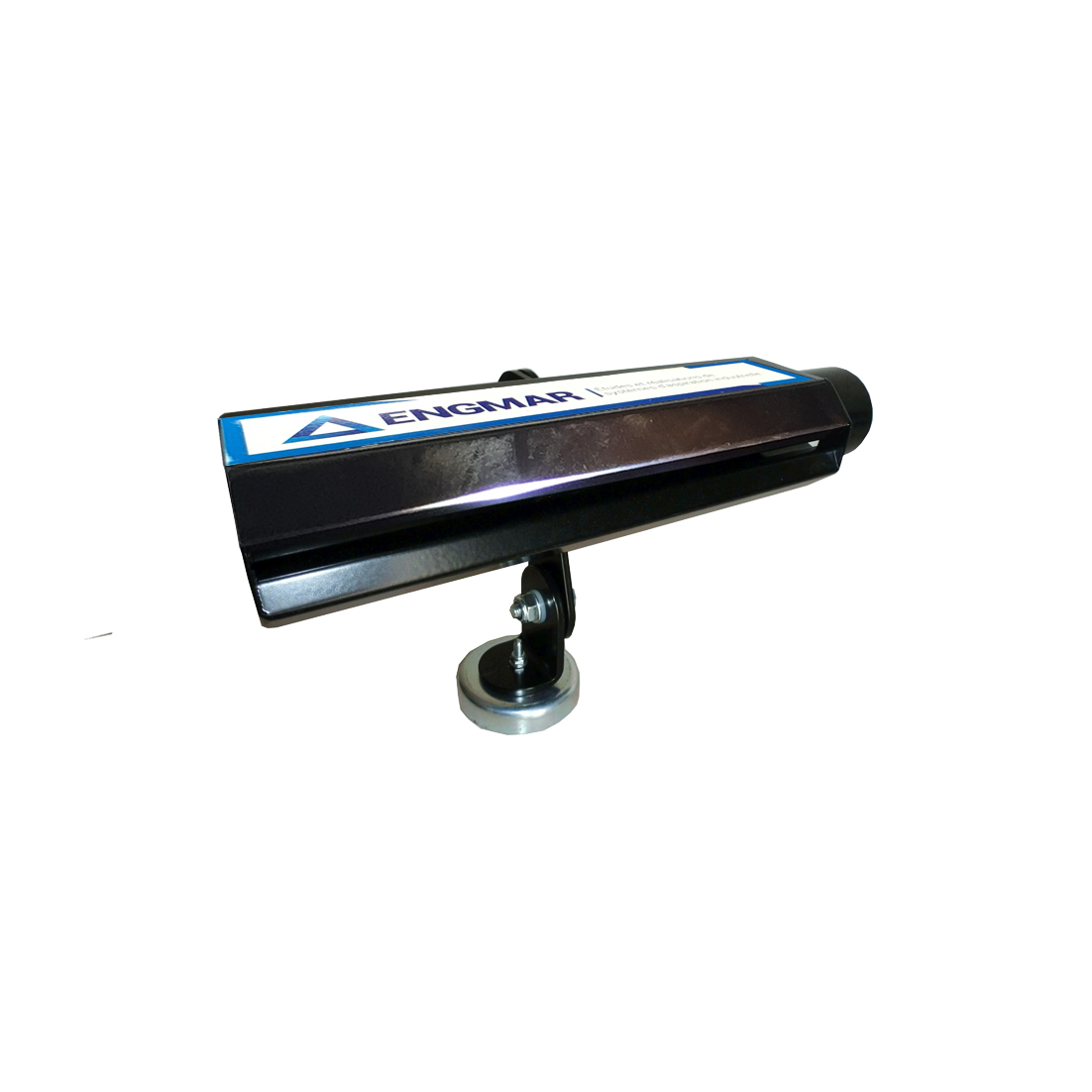

The high vacuum extraction slit nozzles create an opposite air flow to the operators' respiratory tract allowing the capture of welding fumes. They are particularly suited for the extraction of electrode or TIG welding fumes and may be integrated into welding cells.

The advantages of the extraction slit nozzles:

  • May be connected to extraction units of ENGMAR replacing an extraction torch
  • Easy integration on any medium with connection of 60mm diameter (slit nozzle width 300mm) or 40mm diameter (slit nozzle width 150mm)
  • Efficiency across the entire width, with a distance of 200mm to the point of emission (may vary according to the welding process)
  • Keeps the upper zone of the workstation free and provides good visibility
