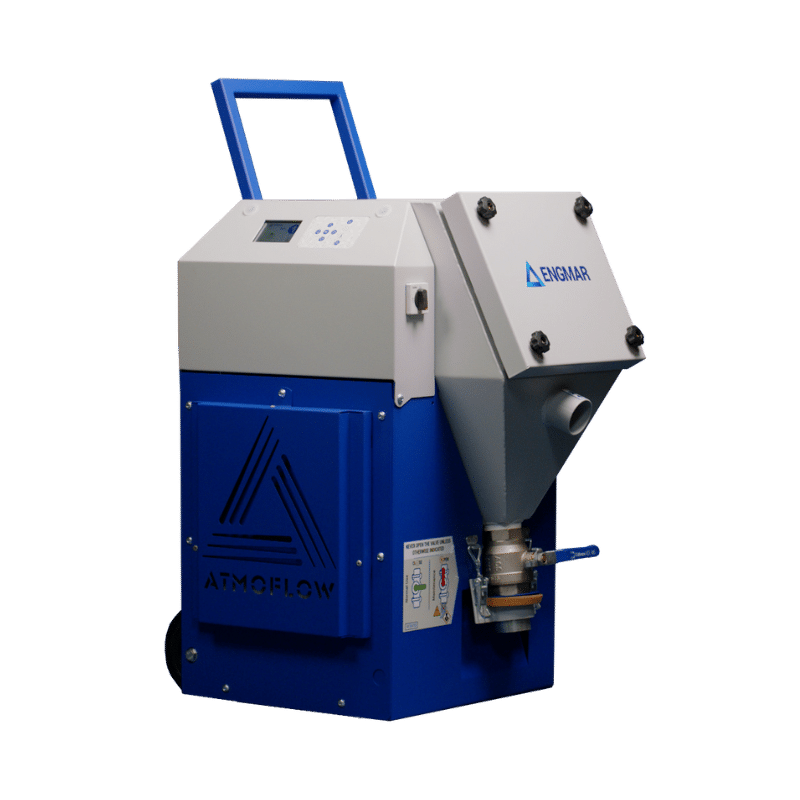

ATMOFLOW Standard Extraction units
- Mobile ATMOFLOW extraction unit
- 99,95% filtration on particles of 0.3 μm and more
- Connection of MIG/MAG or TIG extraction torches
- Laminar slit nozzles and cyclones
- Automatic cleaning
Extraction units Atmoflow
Connect a torch or a laminar slit nozzle
to the ATMOFLOW mobile extraction unit to efficiently treat welding
fumes and protect welders’ health.

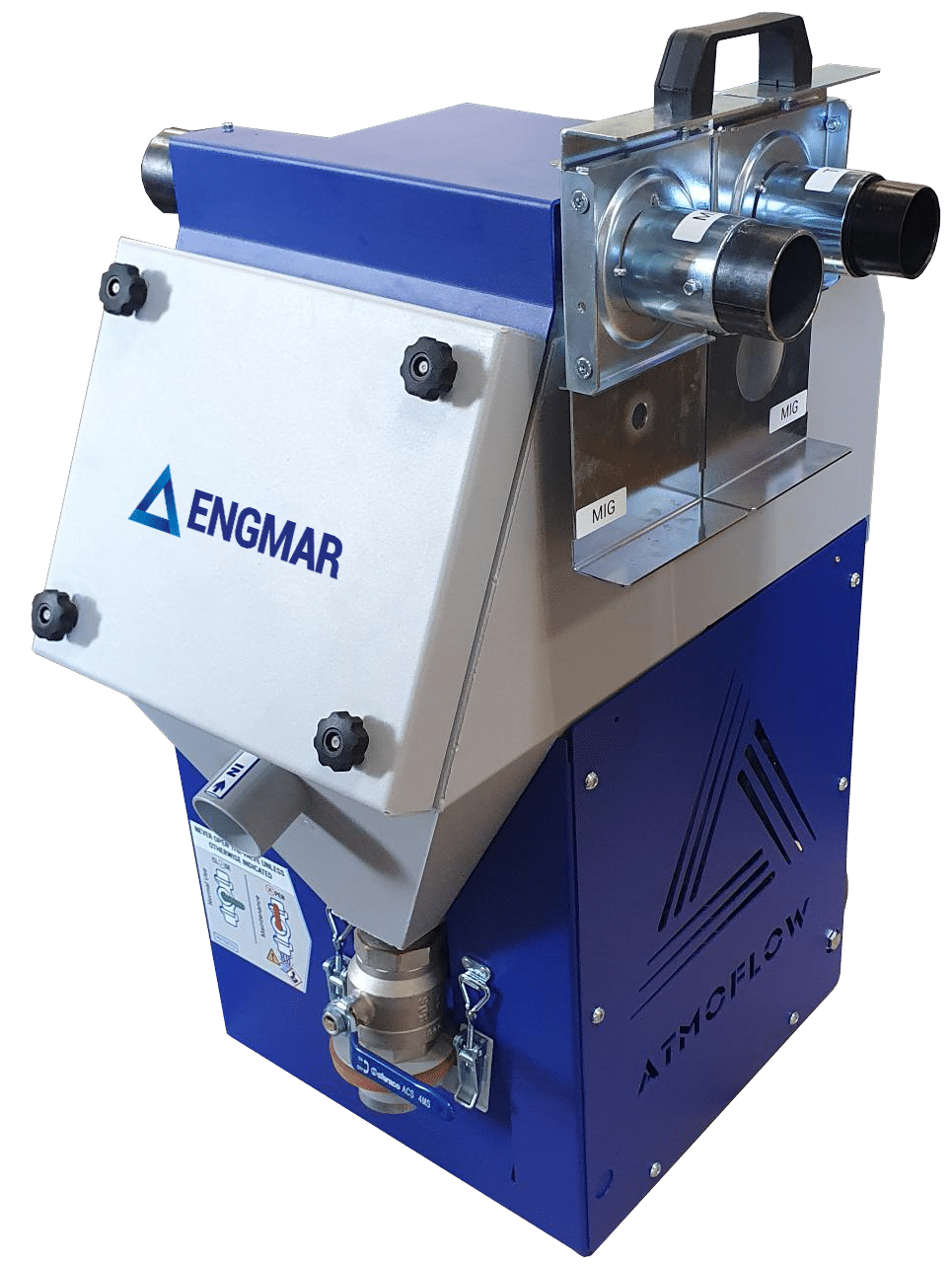

Dual connections ATMOFLOW extraction unit
- Mobile ATMOFLOW extraction unit with dual connections
- 99,95% filtration on particles of 0.3 μm and more
- Connection of MIG/MAG or TIG extraction torches
- Laminar slit nozzles and cyclones
- Automatic cleaning

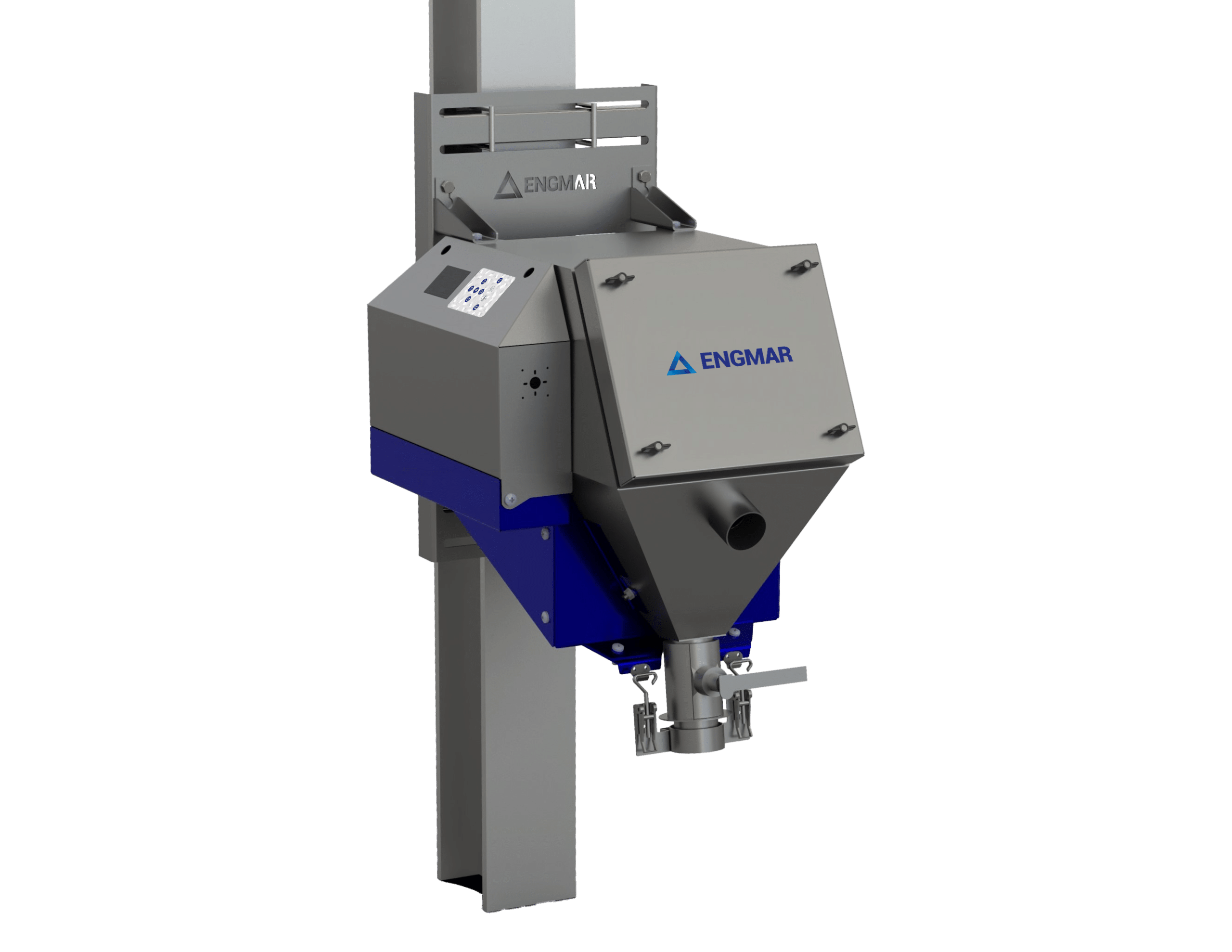

Remote ATMOFLOW extraction unit
- Remote ATMOFLOW allows installation of the filter box at the workstation and the turbine remotely
- 99,95% filtration on particles of 0.3 μm and more
- Connection of MIG/MAG or TIG extraction torches, laminar slit nozzles and cyclones
- Automatic cleaning
Dual connections ATMOFLOW extraction unit
- Mobile ATMOFLOW extraction unit with dual connections
- 99,95% filtration on particles of 0.3 μm and more
- Connection of MIG/MAG or TIG extraction torches
- Laminar slit nozzles and cyclones
- Automatic cleaning

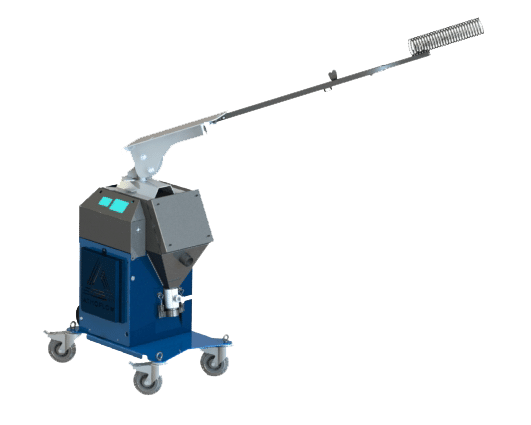

On cart ATMOFLOW extraction unit
- Mobile ATMOFLOW extraction unit on cart with balancer
- Mobile ATMOFLOW extraction unit
- 99,95% filtration on particles of 0.3 μm and more
- Connection of MIG/MAG or TIG extraction torches, laminar slit nozzles and cyclones
- Automatic cleaning
Benefits

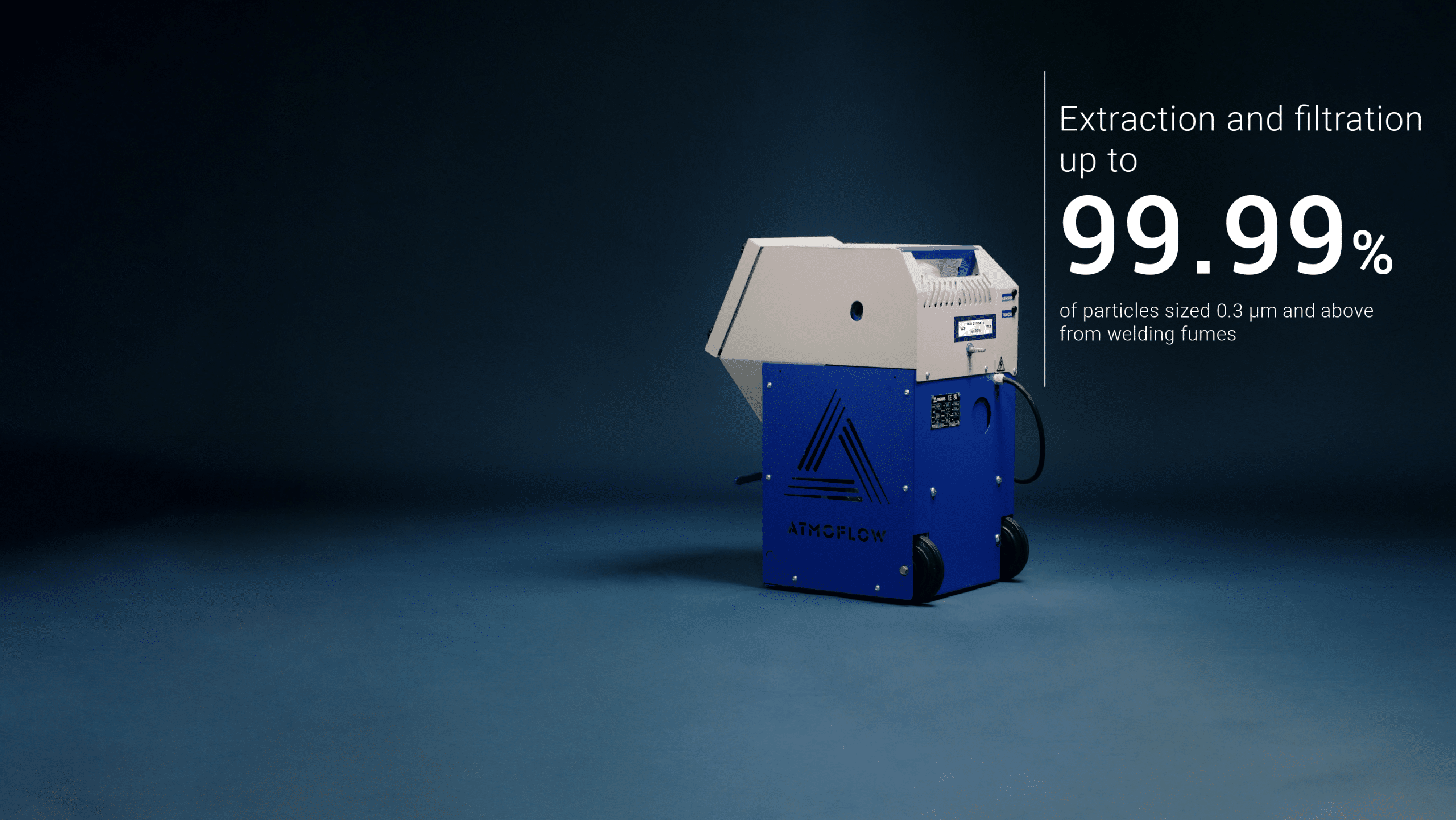

Extraction and filtration of
up to
99,99%
of particles sized 0.3 μm and above from welding fumes
Guided emptying procedure via the user interface
No direct contact with dust during use or maintenance
Two filtration levels available, with automatic cleaning and a bag-in/bag-out system for filter replacement
W3 certified for stainless steel applications
Several versions available: standard, trolley-mounted, double connection, or remote version
Standards Compliance
- EN 21904-1
- EN 21904-4
- EN 60974-7
The ATMOFLOW extraction unit offers a complete solution for welding fume extraction and filtration, as well as for workstation cleaning. Available in several versions (standard, trolley-mounted, double connection, remote), it adapts to all industrial configurations.
Thanks to its stable extraction airflow, maintained by automatic filter cleaning, and its extended maintenance cycles, the ATMOFLOW is perfectly suited for intensive use. Its clever emptying system protects the operator both during welding and when cleaning the unit. The intuitive user interface displays notifications to alert of any events or potential risks, supporting the user daily.
Recommended Industries
Metal machining and forming industry
Learn more
Metal machining and forming industry
Industrial piping
Learn more
Industrial piping
Sheet metal fabrication and welding
Learn more
Sheet metal fabrication and welding
Locksmithing and metalworking
Learn more
Locksmithing and metalworking
Defense
Learn more
Defense
Public Works and Construction
Learn more
Public Works and Construction
Transportation
Learn more
Transportation
Chemical
Learn more
Chemical
ENGMAR Advice
The ENGMAR ATMOFLOW unit guarantees powerful extraction and optimal filtration of welding fumes, meeting the requirements of professional environments and certified W3, including for stainless steel applications.
In accordance with regulations and subject to a CARSAT exemption, the ATMOFLOW unit can operate in recirculation mode, thereby limiting heat loss in the workshop. Thanks to its various versions, it easily integrates into all workstation configurations.
The welder's safety and comfort are central to its design: the operator never comes into contact with dust, whether during cleaning or filter replacement, thanks to a clean and secure maintenance system.
With the standalone ATMOFLOW unit, ENGMAR offers you a high-performance, certified extraction solution adaptable to all your welding applications.
Products recommended by ENGMAR
CHD Laminar slit nozzle
- Laminar slit nozzle usable as a substitute for an extraction torch
- Easy integration on any support thanks to a flexible connection
Cyclones cleaners KBCNL
- Mobile cyclone cleaner with disposable bag
Cyclones cleaners KBCNF
- Stationary cyclone with hose reel and bag
Cyclones cleaners KBCNC
- Mobile cyclone with hose reel and bag
380 automatic torch MIG/MAG
Water-cooled
- Power 340 A (gas mixture)
- 400 A (CO₂)
- Duty cycle 100%
- Wire diameter 1,2 - 1,6mm
- Available in 0° et 45°
400 automatic torch MIG/MAG
Water-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 100%
- Wire diameter 1,2 - 1,6mm
- Available in 0° et 45°
T9 TIG extraction torch
Air-cooled
- Power 125 A DC
- 100 A AC
- Duty cycle 60%
T9 TIG extraction torch
T17 TIG extraction torch
Air-cooled
- Power 150 A DC
- 125 A AC
- Duty cycle 60%
T20 TIG extraction torch
Water-cooled
- Power 250 A DC
- 180 A AC
- Duty cycle 100%
T20 TIG EXTRACTION TORCH
420 Manual MIG-MAG ERGOFLOW torches
Water-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 100%
- Wire diameter 0,8 - 1,6mm
- Available in 45° et 50°
400 Manual MIG-MAG ERGOFLOW torches
Air-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 60%
Water-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 100%
- Wire diameter 1,2 - 1,6mm
- Available in 45° et 60°
360 Manual MIG-MAG ERGOFLOW torches
Air-cooled
- Power 360 A (gas mixture)
- 390 A (CO₂)
- Duty cycle 60%
- Wire diameter 1,0 - 1,6mm
- Available in 45° et 50°
250 MIG/MAG fume extraction torch ERGOFLOW
Air-cooled
- Power 180 A (gas mixture)
- 220 A (CO₂)
- Duty cycle 60%
Water-cooled
- Power 200 A (gas mixture)
- 240 A (CO₂)
- Duty cycle 100%
- Wire diameter 0,8 - 1,2mm
- Available in 45° et 50°
240 Manual MIG/MAG ERGOFLOW torches
Air-cooled
- Power 180 A (gas mixture)
- 220 A (CO₂)
- Wire diameter 0,8 - 1,2mm
- Available in 50°
Cyclones cleaners KBCN
- Mobile cyclone cleaner without disposable bag
Related services
Maintenance
Maintenance: Regular maintenance of our extraction units ensures weld quality and optimizes equipment lifespan. We offer maintenance packages that include inspection and repair of the units.
After-sales service
Our maintenance and after-sales service team provides repair for our extraction units.
Download the catalog
Explore our full range of products and services dedicated to protecting the health and well-being of your employees.
Request a quote
Our team of experts is available to help you choose the right extraction torches for your needs.
We also offer training sessions to raise awareness about welding fumes, as well as product demonstrations.
Contact us for personalized support or to receive a quote.
