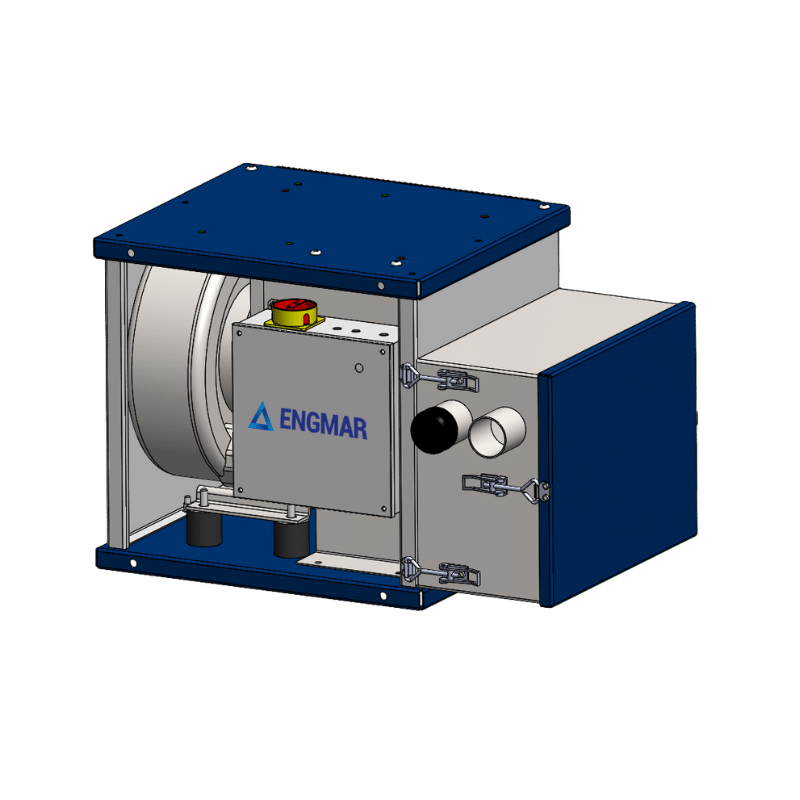

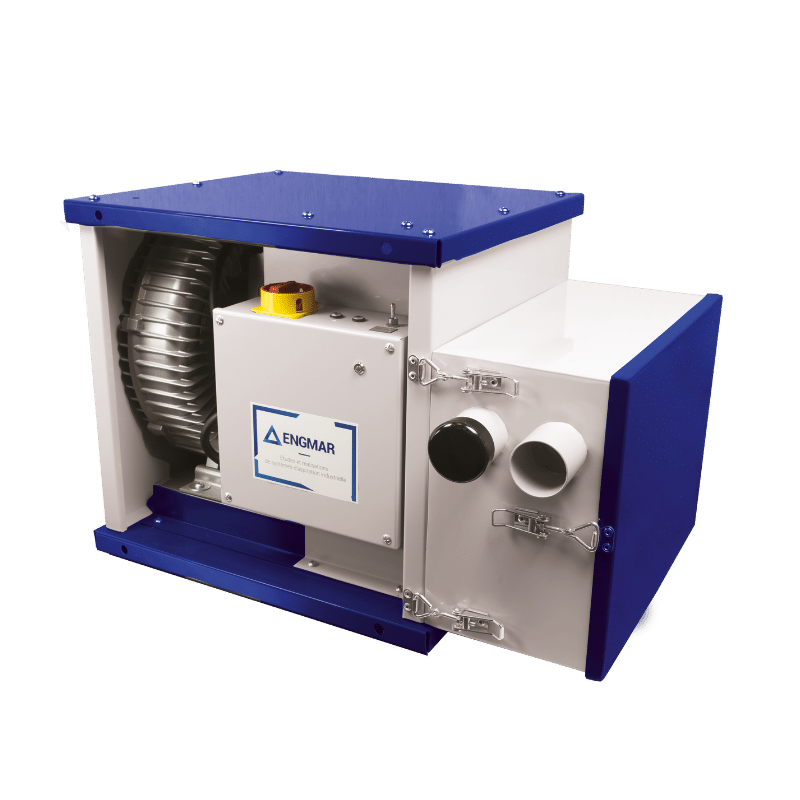

AA Extraction units
- For MIG welding
Extraction units AA
Effectively treat harmful particles generated by welding
while reducing the floor space occupied in your workshop.

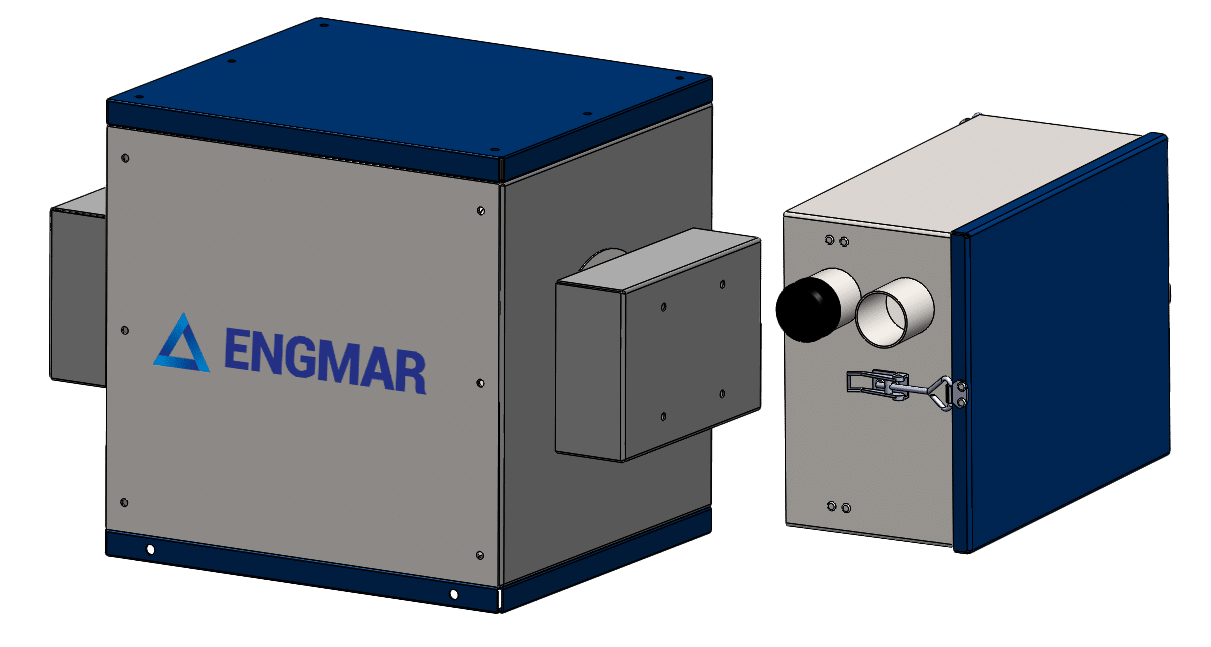

AAT30DP extraction unit
- Remote AA extraction unit for MIG welding allows installation of the filter box at the workstation and the turbine remotely
AAT30IDP extraction unit
- For MIG welding allows installation of the insulated filter box at the workstation and the tubrine remotely
AATIG Extraction unit
- TIG welding
Benefits
Extraction of
up to
99,99%
of particles 1 μm and larger
Compact and robust unit with a small footprint
High installation flexibility: stacking multiple units, wall or pole mounting, possibility to relocate the filter housing
Standards Compliance
- EN 21904-1
- EN 21904-4
- EN 60974-7
The extraction units from the AA range are designed to equip extraction torches and discharge pollutants outside. For optimal protection, it is possible to choose dual filtration by combining a metal pre-filter with a filter cartridge.
Thanks to their clever design, AA units offer great installation flexibility and help reduce the workshop’s floor space footprint.
Recommended Industries
Metal machining and forming industry
Learn more
Metal machining and forming industry
Industrial piping
Learn more
Industrial piping
Sheet metal fabrication and welding
Learn more
Sheet metal fabrication and welding
Locksmithing and metalworking
Learn more
Locksmithing and metalworking
Defense
Learn more
Defense
Public Works and Construction
Learn more
Public Works and Construction
Transportation
Learn more
Transportation
Chemical
Learn more
Chemical
ENGMAR Advice
The ENGMAR AA units are extraction systems that are particularly easy to integrate into all types of workshops. Their compact design allows for wall, pole, or even outdoor installation, offering maximum flexibility.
Ideal for implementing a practical and cost-effective solution with external fume discharge, these units ensure strict compliance with regulations while guaranteeing optimal safety for welders, without compromising extraction performance.
With the AA range, ENGMAR offers you a simple, efficient, and compliant extraction solution, perfectly suited to the demands of your working environment.
Products recommended by ENGMAR
CHD Laminar slit nozzle
- Laminar slit nozzle usable as a substitute for an extraction torch
- Easy integration on any support thanks to a flexible connection
REVOLFLOW Laminar slit nozzle
- Efficient capture across the entire width of the hood
- Easy integration on any support thanks to its lightweight design
- 360° rotation for comfortable and precise adjustment
- Optimal visibility thanks to positioning behind the workstation
Cyclones cleaners KBCNL
- Mobile cyclone cleaner with disposable bag
Cyclones cleaners KBCNF
- Stationary cyclone with hose reel and bag
Cyclones cleaners KBCNC
- Mobile cyclone with hose reel and bag
T9 TIG extraction torch
Air-cooled
- Power 125 A DC
- 100 A AC
- Duty cycle 60%
T9 TIG extraction torch
T17 TIG extraction torch
Air-cooled
- Power 150 A DC
- 125 A AC
- Duty cycle 60%
T20 TIG extraction torch
Water-cooled
- Power 250 A DC
- 180 A AC
- Duty cycle 100%
T20 TIG EXTRACTION TORCH

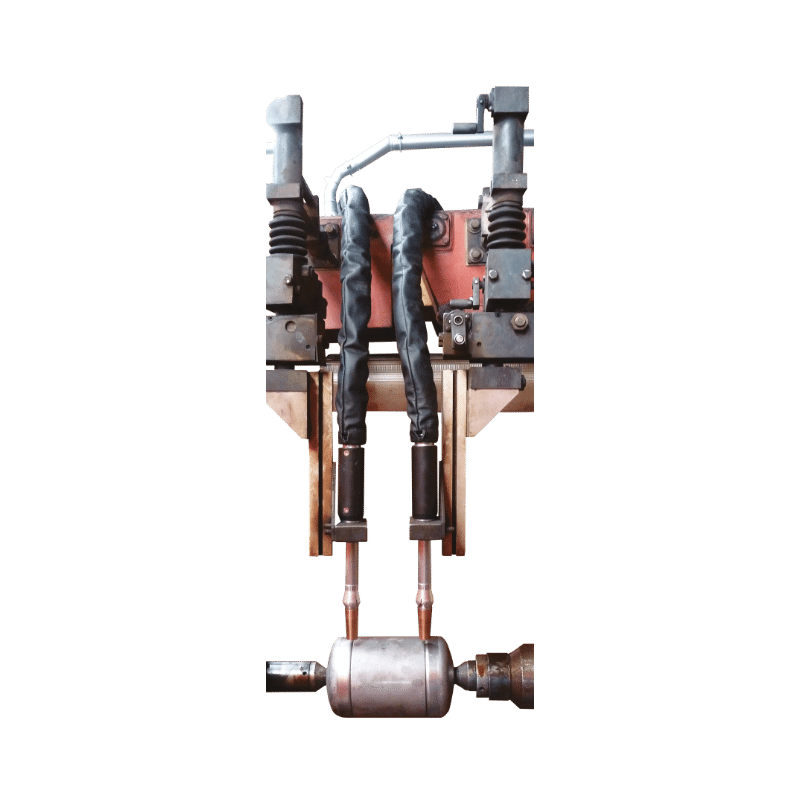

380 automatic torch MIG/MAG
Water-cooled
- Power 340 A (gas mixture)
- 400 A (CO₂)
- Duty cycle 100%
- Wire diameter 1,2 - 1,6mm
- Available in 0° et 45°
400 automatic torch MIG/MAG
Water-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 100%
- Wire diameter 1,2 - 1,6mm
- Available in 0° et 45°
420 Manual MIG-MAG ERGOFLOW torches
Water-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 100%
- Wire diameter 0,8 - 1,6mm
- Available in 45° et 50°
400 Manual MIG-MAG ERGOFLOW torches
Air-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 60%
Water-cooled
- Power 440 A (gas mixture)
- 500 A (CO₂)
- Duty cycle 100%
- Wire diameter 1,2 - 1,6mm
- Available in 45° et 60°
250 MIG/MAG fume extraction torch ERGOFLOW
Air-cooled
- Power 180 A (gas mixture)
- 220 A (CO₂)
- Duty cycle 60%
Water-cooled
- Power 200 A (gas mixture)
- 240 A (CO₂)
- Duty cycle 100%
- Wire diameter 0,8 - 1,2mm
- Available in 45° et 50°
360 Manual MIG-MAG ERGOFLOW torches
Air-cooled
- Power 360 A (gas mixture)
- 390 A (CO₂)
- Duty cycle 60%
- Wire diameter 1,0 - 1,6mm
- Available in 45° et 50°
240 Manual MIG/MAG ERGOFLOW torches
Air-cooled
- Power 180 A (gas mixture)
- 220 A (CO₂)
- Wire diameter 0,8 - 1,2mm
- Available in 50°
Cyclones cleaners KBCN
- Mobile cyclone cleaner without disposable bag
