ENTA extraction table
- Extraction table for cutting with sacrificial plates without back wall
Extraction tables ENTA
Extract welding fumes, cutting splatter, and grinding
dust effectively with our ENTA extraction tables.

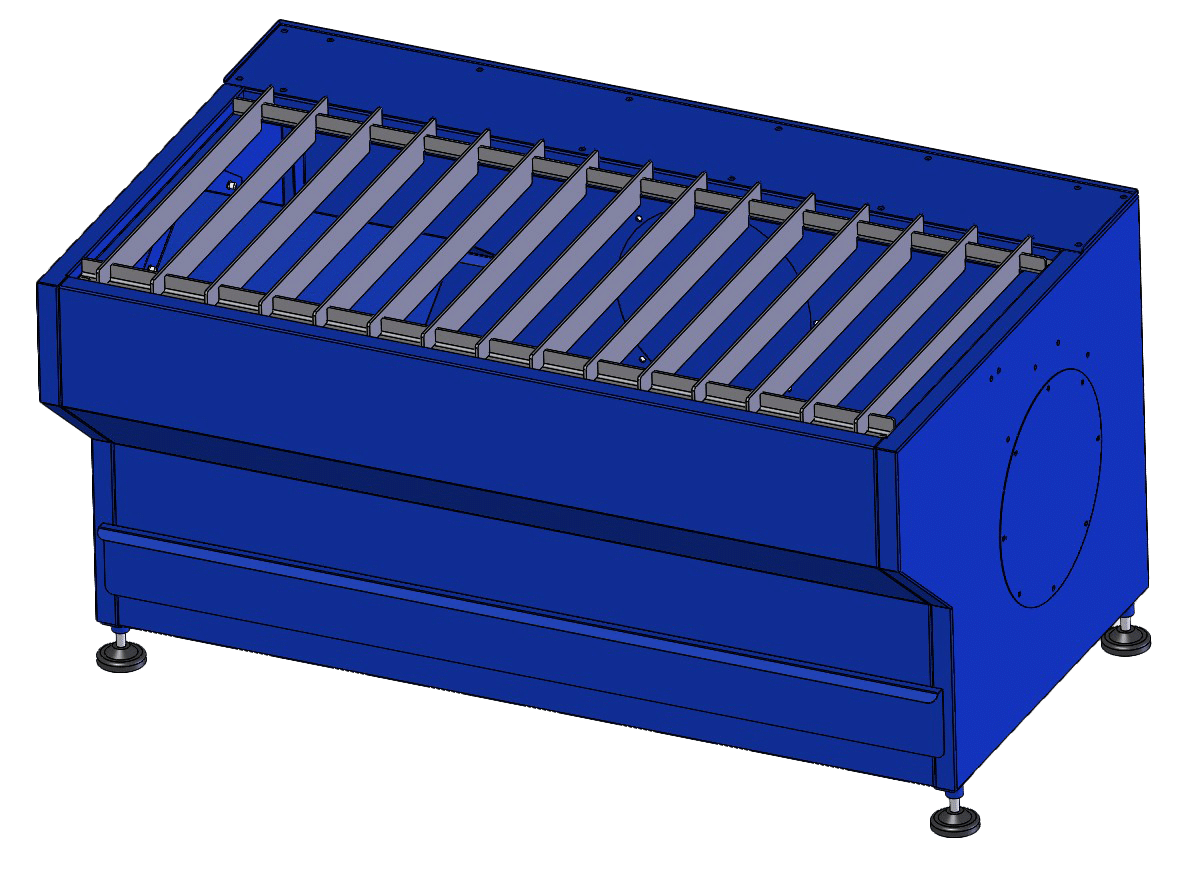

ENTAD Extraction table
- Extraction table for cutting with sacrificial plates without back wall

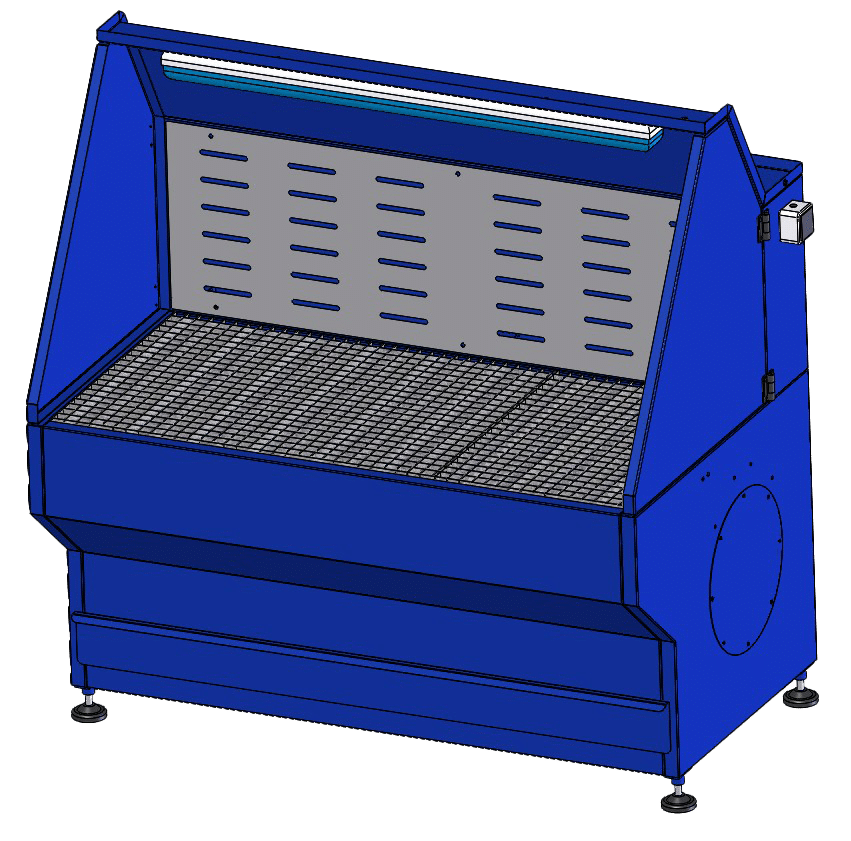

ENTAF Extraction table
- Extraction table for grinding and welding with backdraft extraction panel
- Pivoting flaps
- Luminaire
- Grating, and integrated filtration box

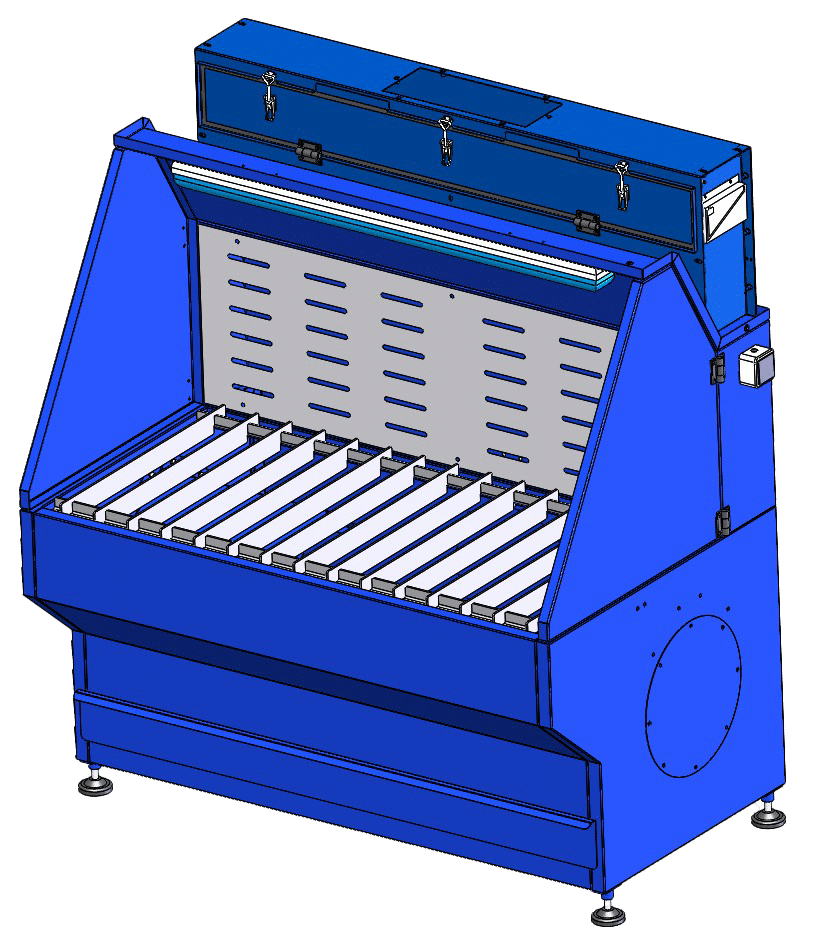

ENTADC Extraction table
- Extraction table for cutting with sacrificial plates with back wall
- lid
- lateral screens
- lighting

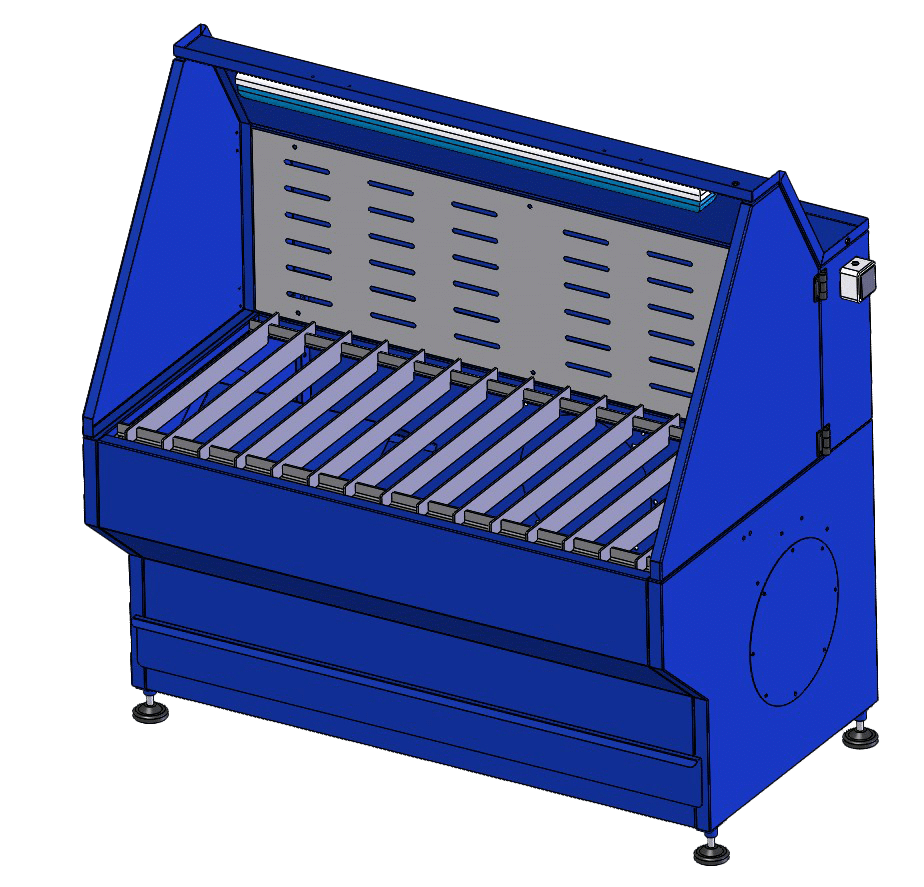

ENTAC Extraction table
- Extraction table for grinding and welding with steel grating, back wall, lid, lateral screens and lighting
Benefits
Retains
up to
99%
of welding fume particles
Compliant with INRS guideline recommendations
Large particle collection drawer, adjustable height, swiveling side panels, and optional lighting depending on the model
Several models and sizes available to suit every need
Standards Compliance
- 2006/42/EC
- NF EN 614-1+A1
The ENTA extraction tables, compact and high-performing, capture welding fumes as well as metal particles generated by cutting and grinding directly at the workstation. Designed for extraction as close as possible to the emission source, they ensure an extraction velocity exceeding 0.5 m/s for grinding and 0.7 m/s for cutting, in accordance with INRS and Carsat recommendations.
ENTA tables can operate autonomously or be connected to a central extraction system. Their adjustable height optimizes operator comfort, while the large, slide-mounted collection drawer makes maintenance easier and reduces the frequency of maintenance cycle.
Various models and sizes are available to suit all workshop configurations.
Recommended Industries
Metal machining and forming industry
Learn more
Metal machining and forming industry
Industrial piping
Learn more
Industrial piping
Sheet metal fabrication and welding
Learn more
Sheet metal fabrication and welding
Locksmithing and metalworking
Learn more
Locksmithing and metalworking
Defense
Learn more
Defense
Public Works and Construction
Learn more
Public Works and Construction
Transportation
Learn more
Transportation
Chemical
Learn more
Chemical
ENGMAR Advice
ENGMAR offers a complete range of extraction tables suitable for all welding and cutting needs. Depending on your requirements, our models are available with either a fixed back panel or swiveling side panels, ensuring optimal capture of fumes and dust regardless of your workspace configuration.
Based on the application, you can choose robust grates for welding or sacrificial plates for cutting. Multiple sizes are available for seamless integration into your workshop.
For quick installation, we provide network kits that allow easy setup of a single workstation. For larger installations, ENGMAR designs and delivers turnkey solutions with centralized and optimized extraction for multiple stations.
Products recommended by ENGMAR
CENFLOW central extraction units
- A single maintenance point
- Limited footprint
- Custom installation tailored to your needs
- Reduced operating cost thanks
- Eligible for the CEE grant
Related services
Annual periodic inspection
We offer annual periodic inspections in compliance with current legislation.
Download the catalog
Explore our full range of products and services dedicated to protecting the health and well-being of your employees.
Request a quote
Our team of experts is available to help you choose the right extraction torches for your needs.
We also offer training sessions to raise awareness about welding fumes, as well as product demonstrations.
Contact us for personalized support or to receive a quote.
